Fourier series for even and odd functions

In the Fourier series of odd and even functions about half the coefficients will be zero.

Fourier coefficients of even and odd functionsLet #L# be a positive number and let #f# be a #2L#-periodic function. Suppose that #f# has Fourier series

\[\begin{array}{rcl}\displaystyle \frac{a_0}{2} + \sum_{n=1}^{\infty} a_n \cos \left(\frac{\pi n x}{L}\right) + b_n \sin \left(\frac{\pi n x}{L}\right) \end{array}\]

If #f# is even, then #b_n=0# for #n=1,2,\ldots#
If #f# is odd, then #a_n=0# for #n=0,1,2\ldots#

Suppose that #f# is even. Since #\cos\left(\frac{\pi n x}{L}\right)# is an even function, the product #f(x)\cdot \cos\left(\frac{\pi n x}{L}\right)# is also even. At the same time, #\sin\left(\frac{\pi n x}{L}\right)# is odd, so #f(x)\cdot \sin\left(\frac{\pi n x}{L}\right)# is also odd. Using the Euler formulas for the coefficients, we can calculate the coefficients for #f#.

\[\begin{array}{rcl}\displaystyle a_n &=&\displaystyle\frac{1}{L} \int_{-L}^{L} f(x) \cos\left(\frac{\pi n x}{L}\right) \dd x = \frac{2}{L} \int_0^{L} f(x)\cos\left(\frac{\pi n x}{L}\right) \dd x \quad \text{for } n=0,1,\ldots \\ b_n &=& \displaystyle\frac{1}{L} \int_{-L}^{L} f(x) \sin\left(\frac{\pi n x}{L}\right) \dd x = 0 \quad \text{for } n=1,2,\ldots \end{array}\]

So the Fourier series of an even function contains only cosines and can be written as stated.

Now let #f(x)# be an odd function. Since #\cos\left(\frac{\pi n x}{L}\right)# is clearly an even function for all non-negative #n#, the product #f(x)\cos\left(\frac{\pi n x}{L}\right)# is odd. At the same time, #\sin\left(\frac{\pi n x}{L}\right)# is odd so that #f(x)\sin\left(\frac{\pi n x}{L}\right)# is even. Then, again using the Euler formulas, we can calculate the coefficients of the Fourier series for #f#:

\[\begin{array}{rcl}\displaystyle a_n &=&\displaystyle\frac{1}{L} \int_{-L}^{L} f(x) \cos\left(\frac{\pi n x}{L}\right) \dd x = 0 \quad \text{for } n=0,1,\ldots \\ b_n &=& \displaystyle\frac{1}{L} \int_{-L}^{L} f(x)\sin\left(\frac{\pi n x}{L}\right) \dd x = \displaystyle\frac{2}{L} \int_0^{L} f(x)\sin\left(\frac{\pi n x}{L}\right) \dd x \quad \text{for } n=1,2,\ldots \end{array}\]

Thus, the Fourier series of a periodic even function contains only terms with sines and can be written as

\[\begin{array}{c}\displaystyle \sum_{n=1}^{\infty} b_n \sin\left(\frac{\pi n x}{L}\right) \end{array}\]

Piecewise smooth

Even in the case where #f# is periodic and piecewise smooth and behaves like an even or odd function at the point where #f# and #f'# are smooth, the theorem holds.

For instance, the #2#-periodic function #f# that is #-1# on #\ivco{-1}{0}# and #1# on #\ivco{0}{1}# is odd outside the points #2k# for integers #k# and the coefficient #a_0# of the Fourier series is #0#.

Consider the #2#-periodic function that is determined by \[f(x)=\begin{cases}-x^2 &\text{if } -1 \leq x\lt 0\\ x^2 &\text{if } 0\leq x\lt 1\end{cases} \]

Its Fourier series has the form \[f(x)=\frac{a_0}{2}+\sum_{m=1}^{\infty}\left(a_m\cdot\cos\left(\frac{m\cdot\pi\cdot x}{L}\right)+b_m\cdot\sin\left(\frac{m\cdot\pi\cdot x}{L}\right)\right)\] where \(L=1\) is the half-period of \(f\).

Of which of the coefficients of the Fourier series can we tell that they are zero without further computation?

\(a_0 =0\)
\(a_m=0\) for \( m=1,2,3,\dots\)

The function is odd, so all coefficients #a_m# are zero.

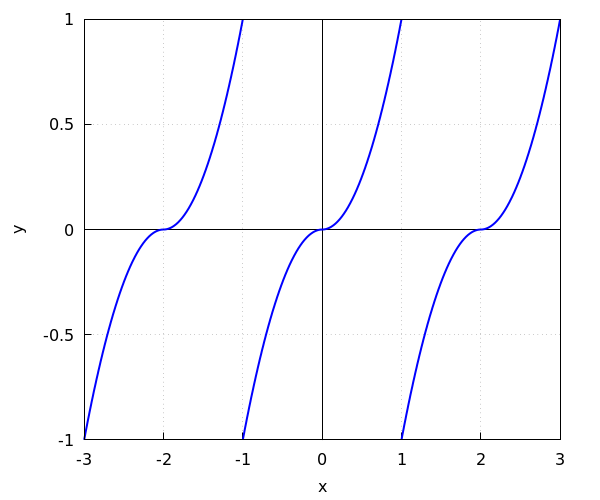

The graph of the function \(f(x)\) has been plotted over three periods in the figure below.
